temporary fencing （AUSTRALIA）

temporary fence

Wire diameter: 3-5mm

Mesh opening: 75x75 75x100 60x150 50 x 100 50 x 50 60 x 60mm

HighXLength: 2100x2400 1800x2900 2100x2600 1800*2400 2100 x 3300mm

Frame: OD32. DO38. OD40. OD42. OD48. OD50. X 2.0mm thickness.

Temporary fence Application:

1. Construction sites and private property.

2. Residential housing sites.

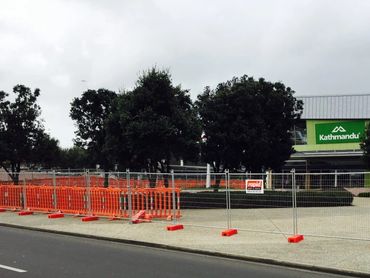

3 major public. Events, sports, concerts, festivals, gatherings etc.

Temporary fence surface treatment: Hot-dip galvanized then PVC spraying.

Temporary fence features: It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations. Different specifications are available according to customers' special inquiry or detailed drawings. Main markets: Australia, Canada, America, European countries, and Asia countries.temporary fence (Australian standard)

Smart Panel – 2.4m Welded MeshPanel Size:2400mm(L) x 2100mm(H)Frame:32mm O.D.Infill Mesh:150mm x 60mm spacingsFinish:Hot Dipped Galvanised

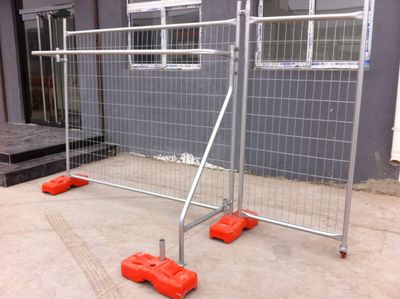

temporary fence panel

Temporary Fence Common Specification Wire Diameter

3.2mm,3.5mm,4.0mm,4.5mm or as request

Opening Mesh：60*150mm,75*75mm,75*100mm,50*100mm etc

Fence Frame Pipe ：32mm,38mm,40mm,42mm,48mm etc

Regular Size：2.1*2.4m,1.8*2.4m,2.1*2.9m,or as request

Plastic Feet：600*220*150mm,or 580*245*130mm

Surface Treatment：Hot-dipped galvanized or electric galvanized

Part：Welded mesh Panel,Round Tube Frames,Plastic feet clamp,Stay/Support

Australia Temporary Fence Popular Size

Wire Diameter：3mm，4mm

Opening Mesh：60*150mm

Vertical Pipe Size：32*2.0mm,150mm left at top and bottom

Panel Size：2100*2400mm

Horizontal Pipe Size：32*1.2-2.0mm

Base Plate600*230*150mm

Part：Welded mesh Panel,Round Tube Frames,Plastic feet clamp,Stay/Support。

temporary fencing （AUSTRALIA）

temporary fence

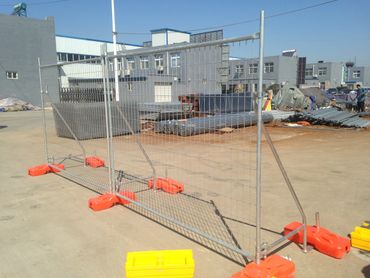

temporary fence panel

panel

temporary fence base（feet）

temporary fence
